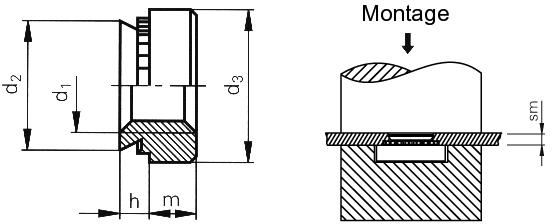

Self-clinching nuts for sheet metal

Thread d₁

M6

Min. sm

1.4 mm

Hole-Ø in the sheet
+0.08
  0

8.75 mm

Material

Grade 10 zinc-plated carbon steel.

Use

For sheet hardnesses up to HRB 80.

3D-Data available

Download

Order description

S-M6-1

Max. d₂

8.72 mm

d₃ ± 0.25

11.18 mm

m ± 0.25

4.08 mm

Max. h

1.38 mm

Min. edge distance up to the hole centre

8.6 mm

Information

For sheet applications > HRB 80, type SP should be used.Nuts for other hole sizes on demand.

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector
