Self-clinching high-strength studs

HFH-M6-15

Type HFH (carbon steel)
Type HFHS (stainless steel)
M5-M10 HFH high-strength studs for extremely high pull-through and torque-out applications. Head protrudes 1, 1-2, 3 mm after installation. Available in different lengths.

E-Shop

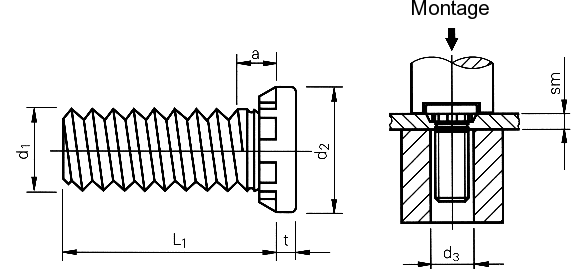

Technical Specification

Thread d1

M6

Min. sm

1.5 mm

L ±0.4

15 mm

Hole-Ø in the sheet
+0.13
  0

6 mm

Material

Grade 9.8 through-hardened zinc-plated carbon steel (other finishes on request).

3D-Data available

Order description

HFH-M6-15

d2 ±0.25

9.4 mm

d3

6.1 mm

Max. a

2.8 mm

Max. t

1.27 mm

Min. edge distance up to the hole centre

11.5 mm

Use

For sheet hardnesses up to HRB 85.

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector

Insertion machines

Further information

HFH M6 15_en 55.8 KB
