Self-clinching dog-point studs

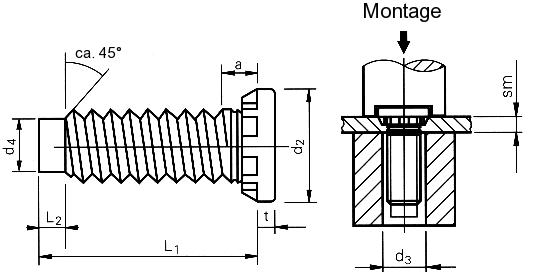

Thread d₁

M10

L₁ ±0.4

30 mm

Material

Grade 9.8 through-hardened zinc-plated carbon steel (other finishes on request).

Use

For sheet hardnesses up to HRB 85.

3D-Data available

Download

Application

Self-clinching studs with dog-point for automatic installation.

Order description

HFHD-M10-30

Hole-Ø in the sheet
+0.13
  0

10 mm

Min. edge distance up to the hole centre

13.7 mm

d₄ ±0.13

7.72 mm

d₃

10.1 mm

L₂ ±0.25

3.43 mm

d₂ ±0.25

15.7 mm

Max. a

4.1 mm

Max. t

2.29 mm

Min. sm

2.3 mm

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector

Insertion machines

Further information

• PEM® Trademark
• Alternative MAThread®
• Performance tests set up
• Description/ Installation instructions
• Technical specification
