Floating self-clinching nuts

AS-M5-2

Type AS (carbon steel)
Type AC (stainless steel)
The internal floating nut permits up to 0.8 mm adjustment for mating hole misalignment.

E-Shop

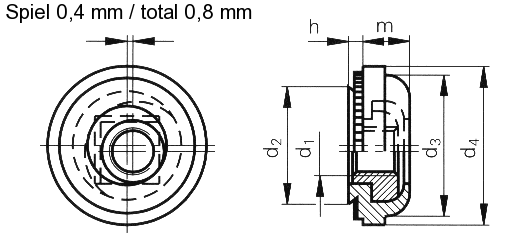

Technical Specification

Thread d1

M5

Min. sm

1.4 mm

Hole-Ø in the sheet
+0.08
  0

10.30 mm

Material

Case-hardened zinc-plated carbon steel.

Use

For sheet hardnesses up to HRB 70.

3D-Data available

Application

The internal floating nut permits up to 0.8 mm adjustment for mating hole misalignment.

Order description

AS-M5-2

Max. d2

10.29 mm

Max. d3

10.29 mm

d4 ±0.4

11.94 mm

Max. m

4.32 mm

Max. h

1.38 mm

Min. edge distance up to the hole centre

9.14 mm

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector

Insertion machines

Further information

AS M5 2_en 57.9 KB
