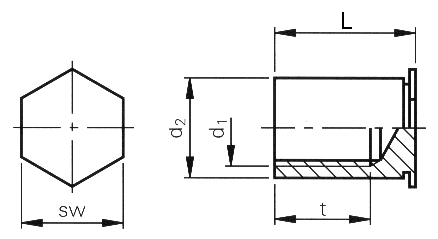

Blind self-clinching standoffs for stainless steel and other sheet metals

Thread d₁

M3

Min. sm

1.0 mm

L
+0.05
-0.13

25 mm

Hole-Ø in the sheet
+0.08
  0

5.40 mm

Material

Passivated stainless steel (AISI 400).

Use

For sheet hardnesses up to HRB 88.

3D-Data available

Download

Order description

BSO4-3,5-M3-25

d₂
  0
-0.13

5.39 mm

d₃

5.6 mm

sw

6.4 mm

Depth of thread t_min.

9.5 mm

Min. edge distance up to the hole centre

6.8 mm

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector

Insertion machines

Further information

• PEM® Trademark
• Performance tests set up
• Description/ Installation instructions
