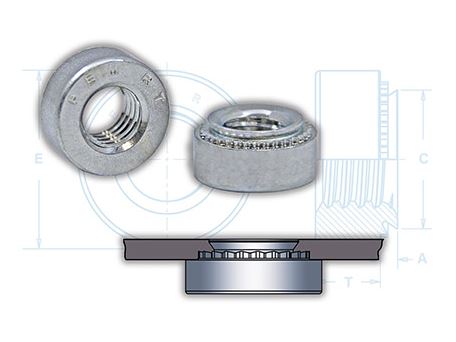

PEM® S-RT: the new free-running locknuts
Inside the new type S-RT PEM® self-clinching lock-nuts a specially-optimised thread pitch makes sure of particularly easy screwing processes. The screws can revolve freely in the thread until a specific force is applied. As soon as this is reached, the special geometry of the lock-nut comes into play. The screw is then held firmly over the entire length of the thread – even when exposed to vibration and after being screwed and unscrewed numerous times. Thanks to these properties, the PEM® SR-T is especially suitable for lasting installation in thin aluminium and steel sheet from 0.8 mm thick. The self-clinching lock-nuts are available in sizes from M3 to M6 as well as for a range of different sheet thicknesses.
- Screw turns freely until a clamp load is applied
- Resistant to vibrational loosening

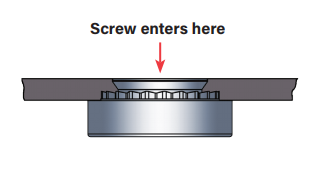

- Back side of panel is flush or sub-flush for screw installation
- Locking feature reusability is not affected by number of on/off cycles
- Uses same mounting hole and installation tooling as standard Stm nut fasteners found in PEM® Bulletin CL
For best results we recommend using a Haeger insertion press for installation of PEM® self-clinching fasteners.
