FASTEKS® thread inserts with cutting holes

Material

Stainless steel 1.4305

Type

FASTEKS® thread inserts with cutting holes

Order description

FTI07M5 SS43

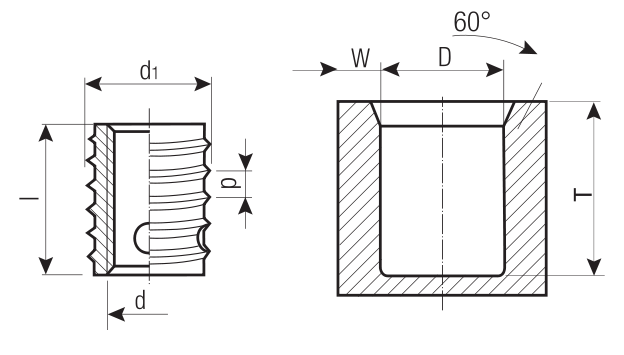

d

M5

l

7 mm

d₁

8 mm

p

1.00 mm

Tmin

9 mm

D Metal

7.6 - 7.7 mm

D Plastic

7.4 - 7.6 mm

Wmin
Light alloys

1.60 mm

Wmin
Cast iron

2.40 mm

Wmin
Plastic

2.00 mm

Additional types

on request

Tolerances

Internel and external threads conform to Tolerance ISO 2 (6H), further dimensions ISO 2768-m.

Installation data

Please note that the mm dimensions quoted represent standard values and may vary depending on the material of the molded part. Is is advisable to run trials prior to series production.
